Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Illuminance measuring range | 0~65535Lux |
| Illuminance allow deviation | ±7% |
| Repeatability test | ±5% |
| Illuminance detection chip | Import digital |
| Wavelength range | 380nm~730nm |
| Temperature measuring range | -30℃~80℃ |
| Temperature measuring accuracy | ±0.5℃ @25℃ |
| Humidity measuring range | 0~100%RH |
| Humidity accuracy | ±3%RH @25℃ |
| Moisture measuring range | 0~100% |
| Moisture measuring accuracy | ±3% @25℃ |
| Moisture Temperature range | -30℃~80℃ |
| Moisture Temperature accuracy | ±0.5℃ @25℃ |
| Communication Interface | ZIGBEE |
| Radio frequency | 2.4G ISM |
| Network Type | Star network |
| Network capacity | 65535 |
| Power | DC9~24V 1A |
| Dimensions | Φ28.5mm×127mm |

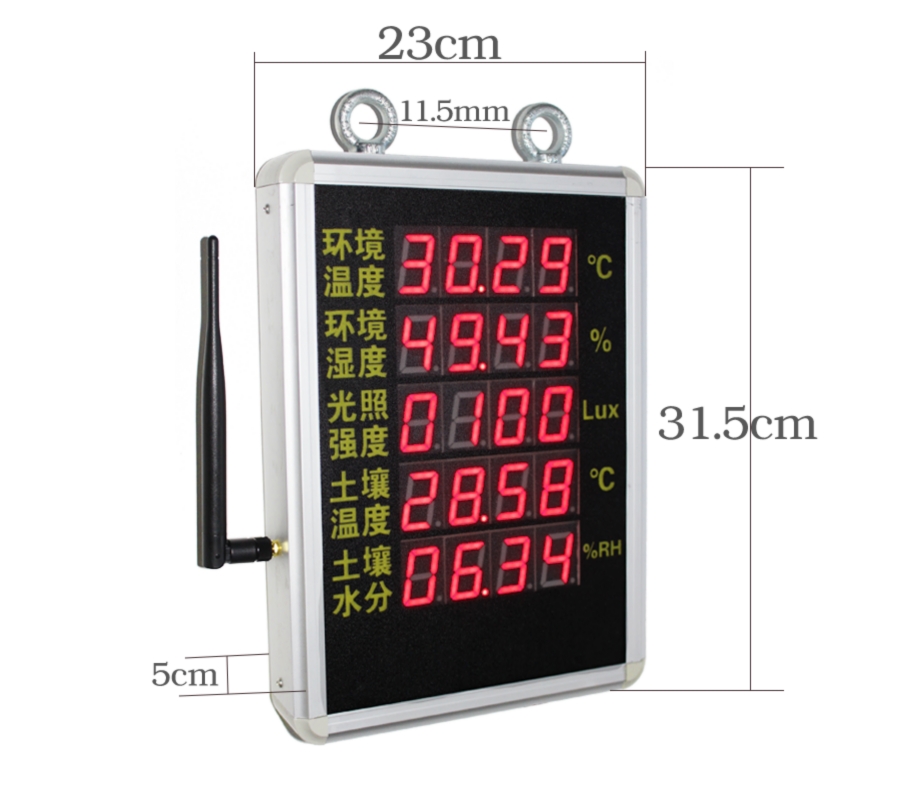

Product Size
Wiring instructions
Why choose this product?
How to use?

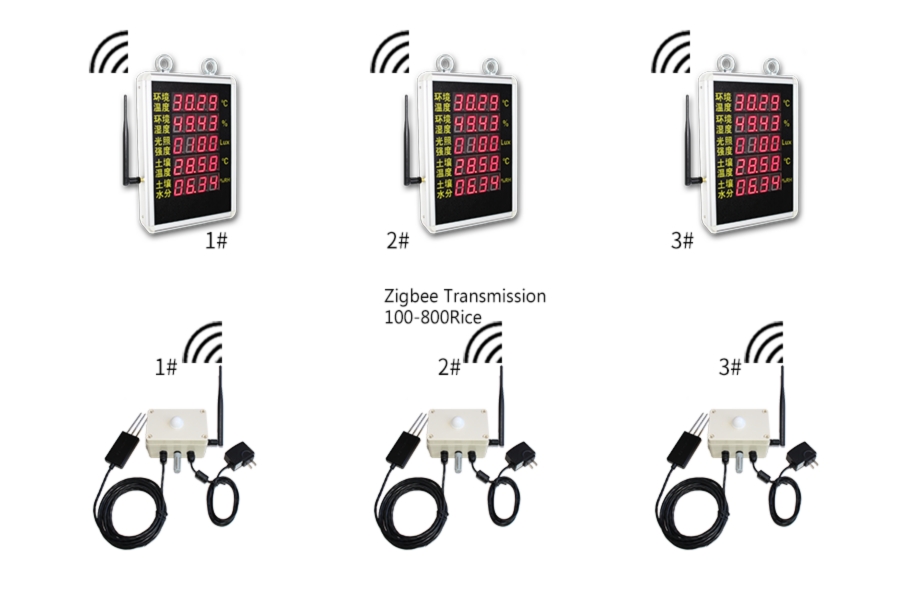

Application solution

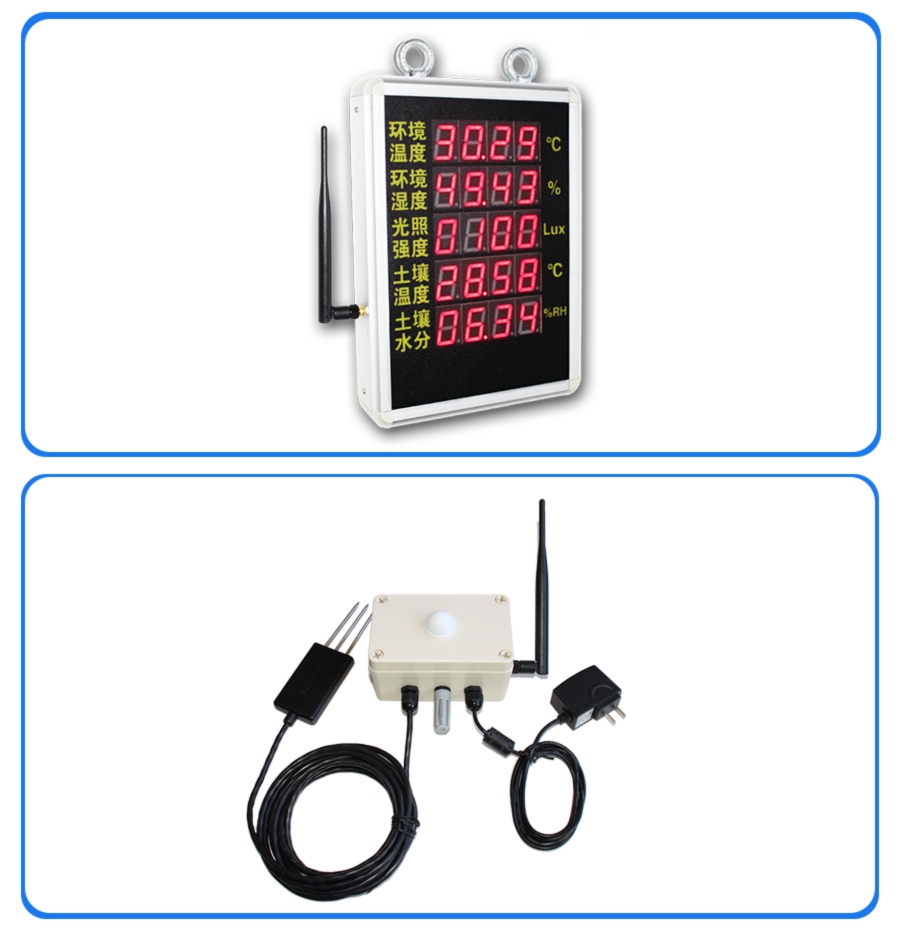

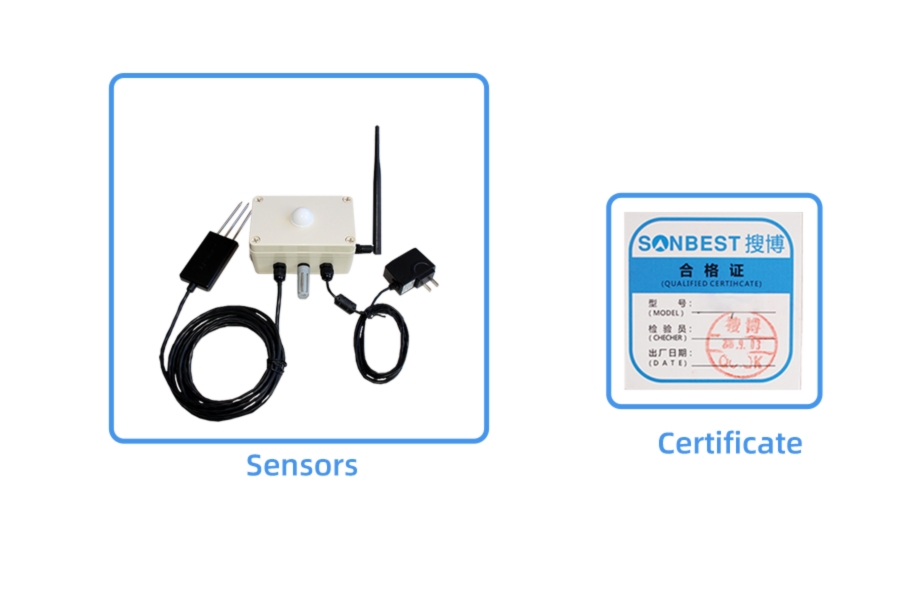

Product List
Pictures
