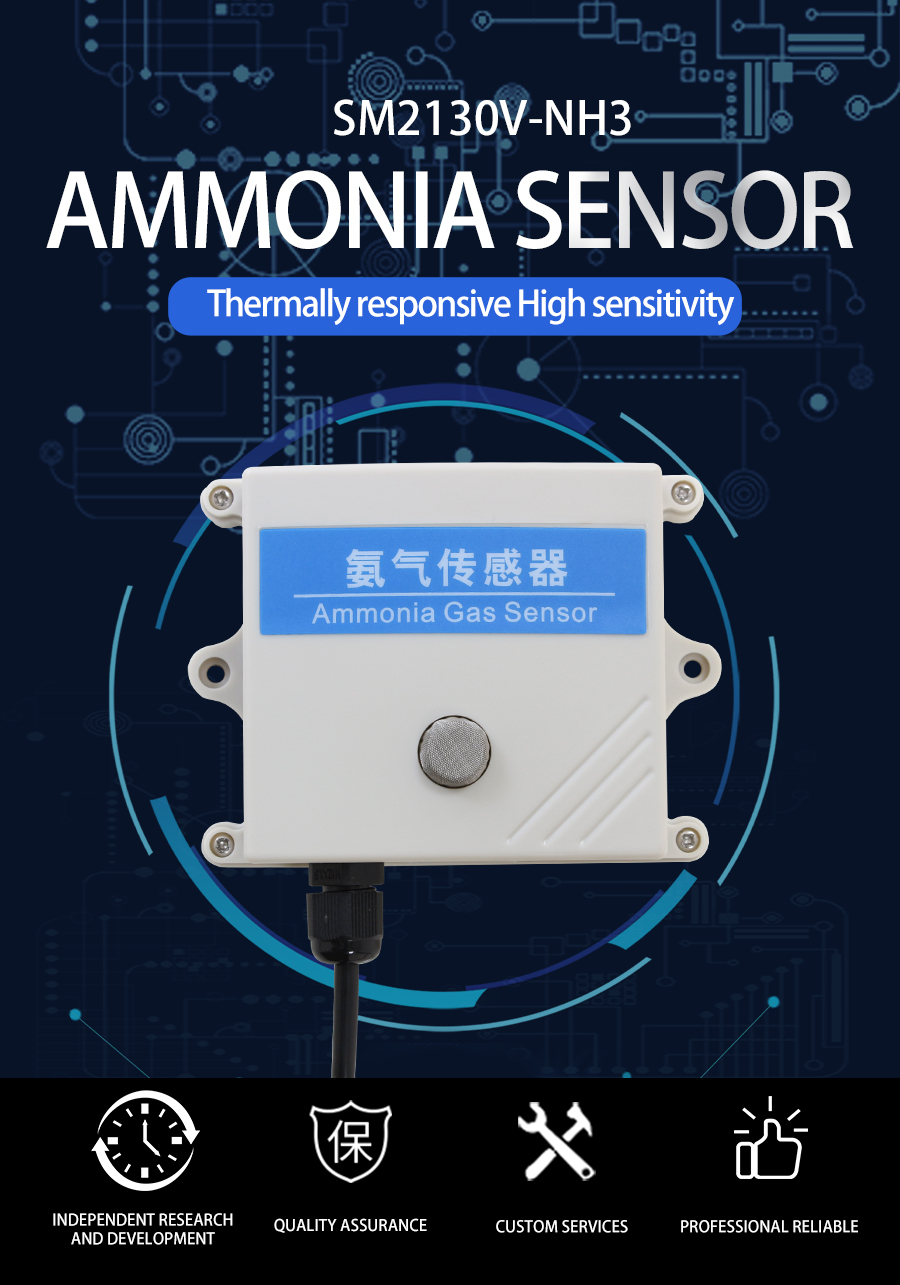

 [SM2130V-NH3]  0-5V voltage type ammonia sensor


SM2130V-NH3

Technical Parameters

Technical parameterParameter value
BrandSONBEST
InterfaceRS485/4-20mA/DC0-5V
PowerDC9~26V/DC12~26V/DC9~26V
Running temperature-30~85℃
Working humidity5%RH~90%RH

Product Selection

    Product DesignRS485,4-20mA,DC0-5VMultiple output methods, the products are divided into the following models depending on the output method.
Product model output method
SM2130BRS485总线
SM2130M4-20mA
SM2130V5DC0-5V

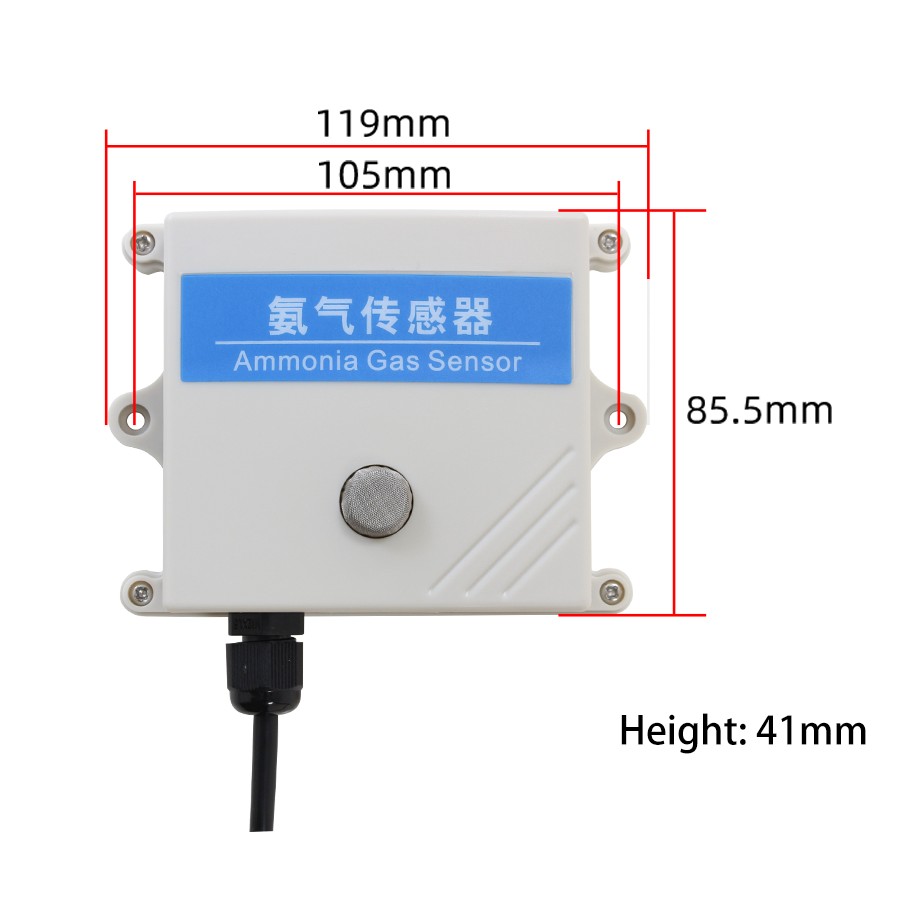

Product Size

SM2130V-NH3

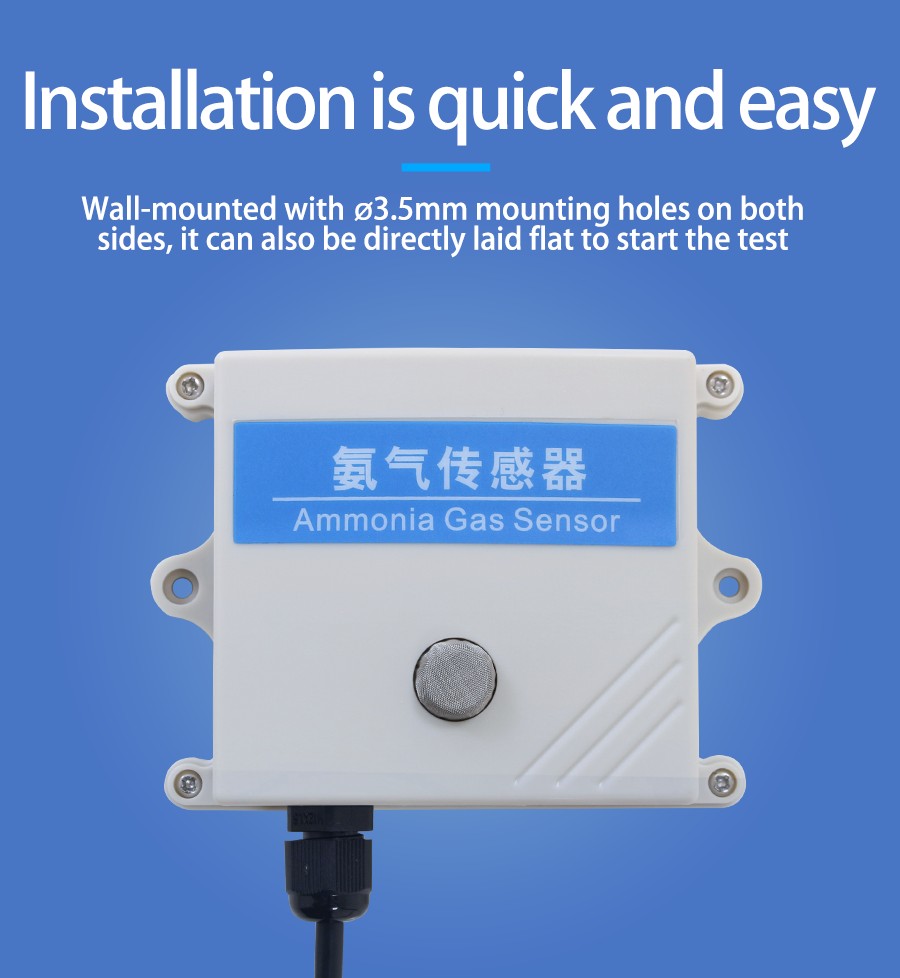

Why choose this product?

SM2130V-NH3 SM2130V-NH3

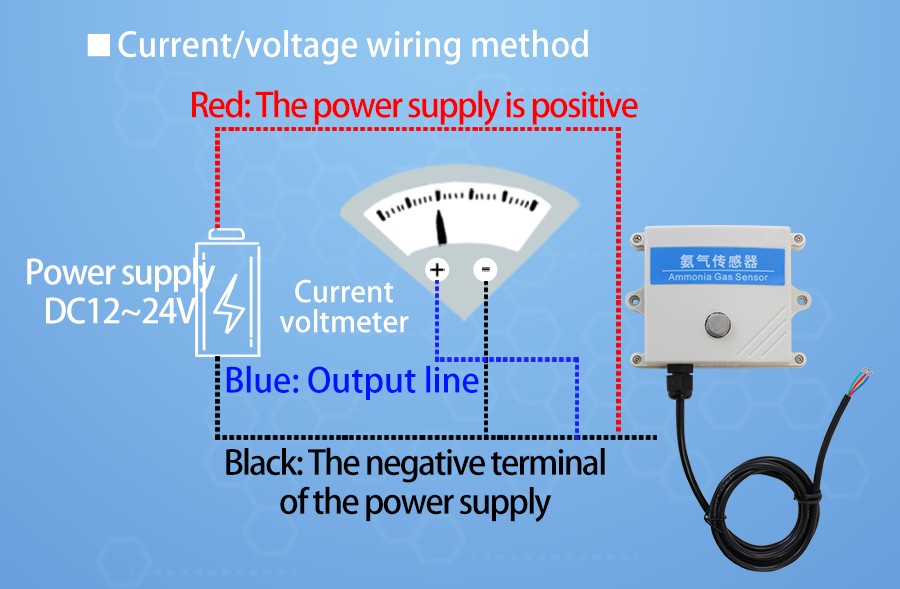

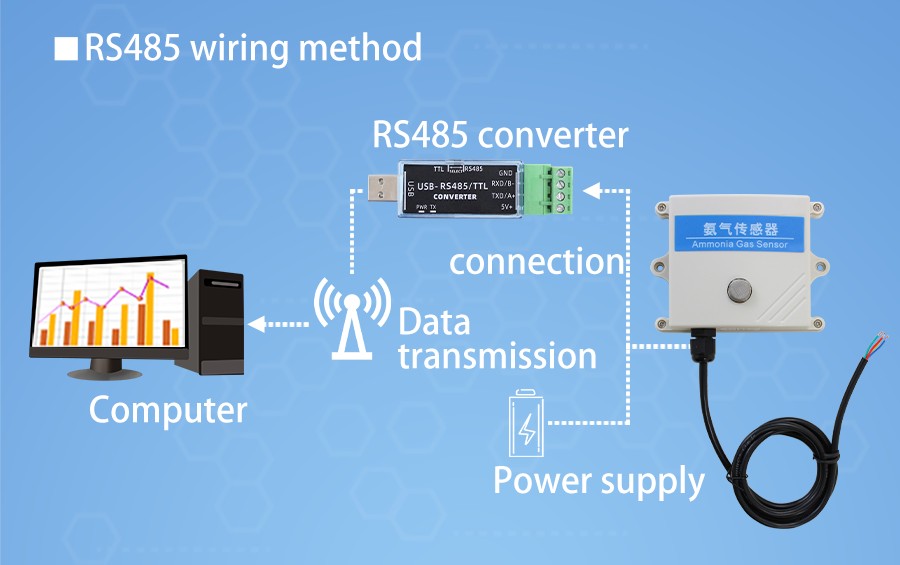

How to use?

SM2130V-NH3

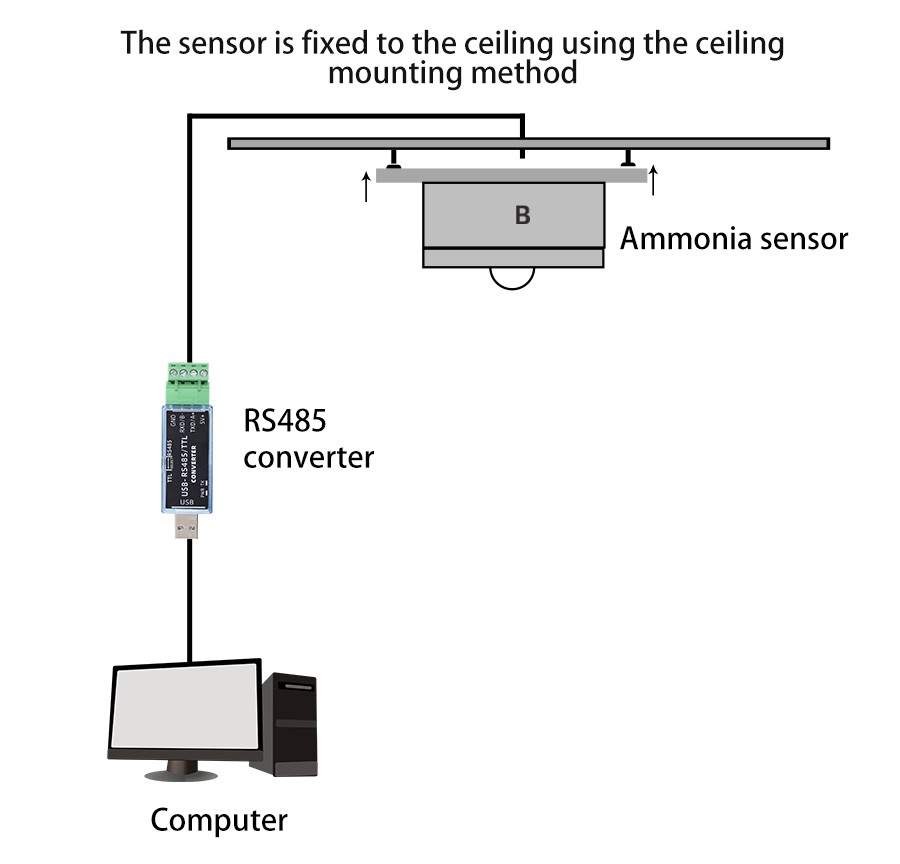

Application solution

SM2130V-NH3 SM2130V-NH3 SM2130V-NH3

Product List

SM2130V-NH3

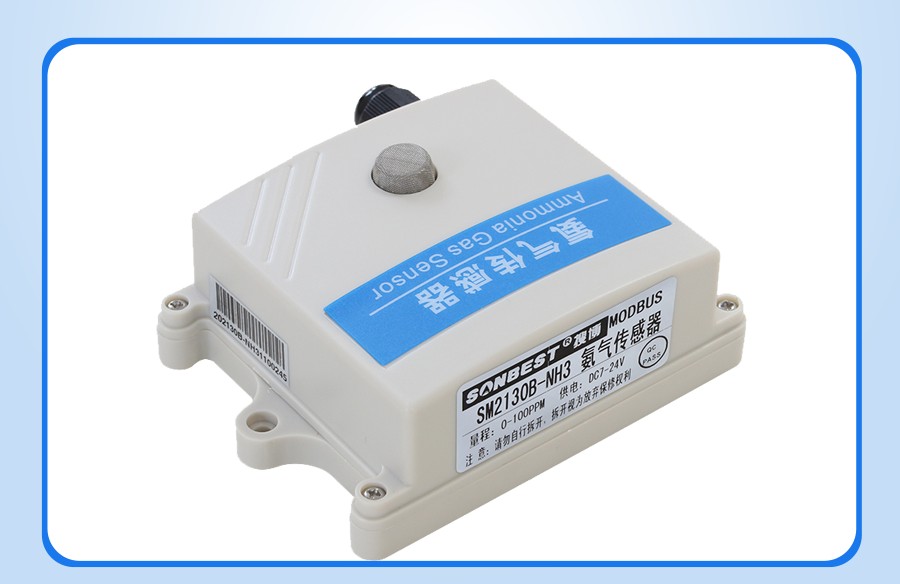

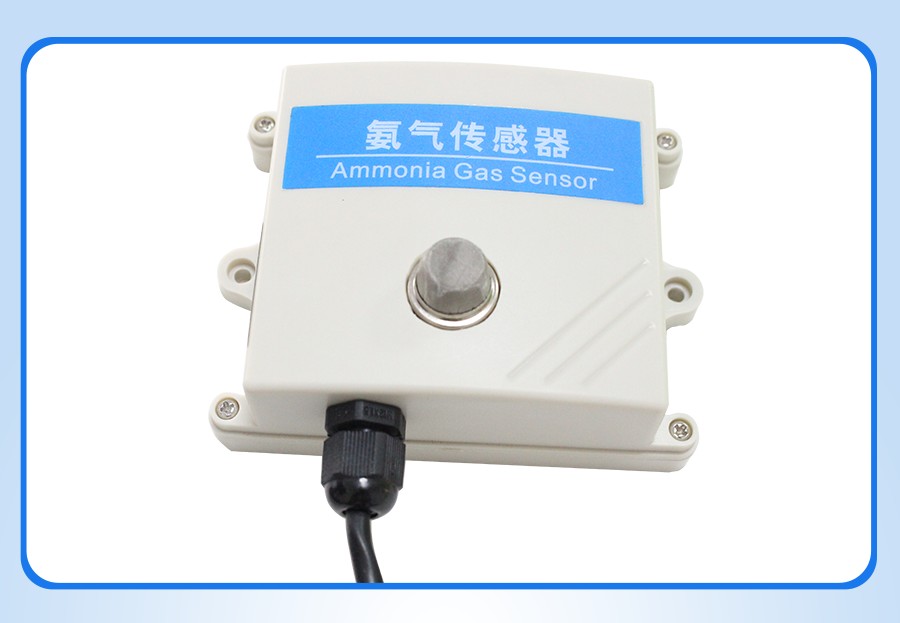

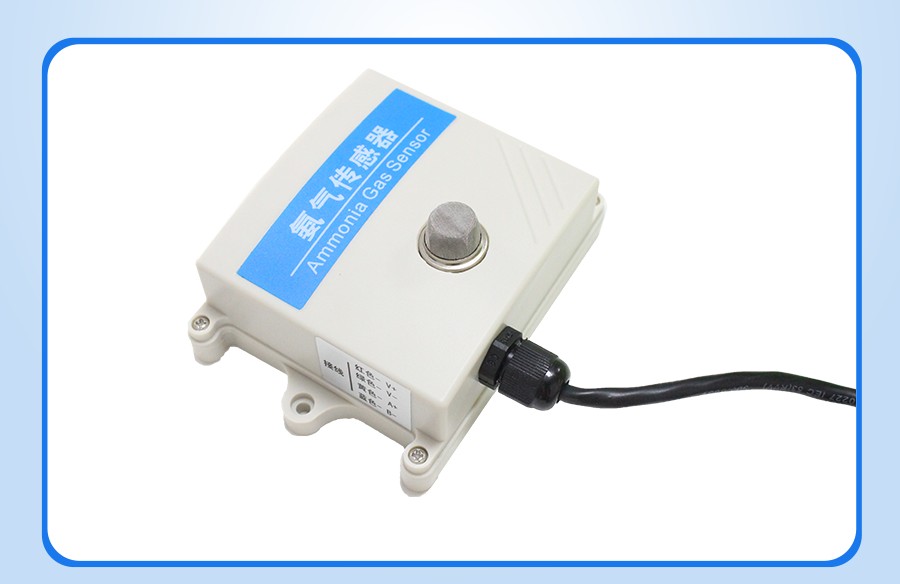

Pictures

SM2130V-NH3 SM2130V-NH3 SM2130V-NH3

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 01 84 0A .
Address Function Code Start Address Data Length Check Code
010300 0000 0184 0A
    For the correct query frame, the device will respond with data: 01 03 02 00 79 79 A6 , response format:
Address Function Code LengthData 1Check Code
0103 0200 79 79 A6
    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table
Configuration Address Register Address Register Description Data Type Value Range
4000100 00ammonia50Read Only0~65535
4010100 64Model CodeRead/Write0~65535
4010200 65 total number of measuring points read/write 1~20
4010300 66device addressread/write1~249
4010400 67baud rateread/write0~6
4010500 68communication moderead/write1~4
4010600 69protocol typeread/write1~10

  For example, the range is 0~50°, the analog output is 4~20mA current signal, conductivity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated current value. The list of commonly used values is as follows:
current(mA)conductivityValue (°) Calculation Process
40.0(50-0)*(4-4)÷(20-4)+0
53.1(50-0)*(5-4)÷(20-4)+0
66.3(50-0)*(6-4)÷(20-4)+0
79.4(50-0)*(7-4)÷(20-4)+0
812.5(50-0)*(8-4)÷(20-4)+0
915.6(50-0)*(9-4)÷(20-4)+0
1018.8(50-0)*(10-4)÷(20-4)+0
1121.9(50-0)*(11-4)÷(20-4)+0
1225.0(50-0)*(12-4)÷(20-4)+0
1328.1(50-0)*(13-4)÷(20-4)+0
1431.3(50-0)*(14-4)÷(20-4)+0
1534.4(50-0)*(15-4)÷(20-4)+0
1637.5(50-0)*(16-4)÷(20-4)+0
1740.6(50-0)*(17-4)÷(20-4)+0
1843.8(50-0)*(18-4)÷(20-4)+0
1946.9(50-0)*(19-4)÷(20-4)+0
2050.0(50-0)*(20-4)÷(20-4)+0
    As shown in the above formula, when measuring 8mA, current current is 16.5°。
  For example, the range is 0~50°, the analog output is 0~5V DC0-5Vvoltage signal, conductivity and DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated DC0-5Vvoltage value. The list of commonly used values is as follows:
DC0-5Vvoltage(V)conductivityValue (°) Calculation Process
00.0(50-0)*(0-0)÷(5-0)+0
110.0(50-0)*(1-0)÷(5-0)+0
220.0(50-0)*(2-0)÷(5-0)+0
330.0(50-0)*(3-0)÷(5-0)+0
440.0(50-0)*(4-0)÷(5-0)+0
550.0(50-0)*(5-0)÷(5-0)+0
    As shown in the above formula, when measuring 2.5V, current DC0-5Vvoltage is 25°。
software for test product
After downloading, please read the readme.txt documentation
