 [SD3613R]  8-channel temperature and humidity recorder


SD3613R

Technical Parameters

Technical parameterParameter value
BrandSONBEST
Temperature measuring range-30℃~80℃
Temperature measuring accuracy±0.5℃ @25℃

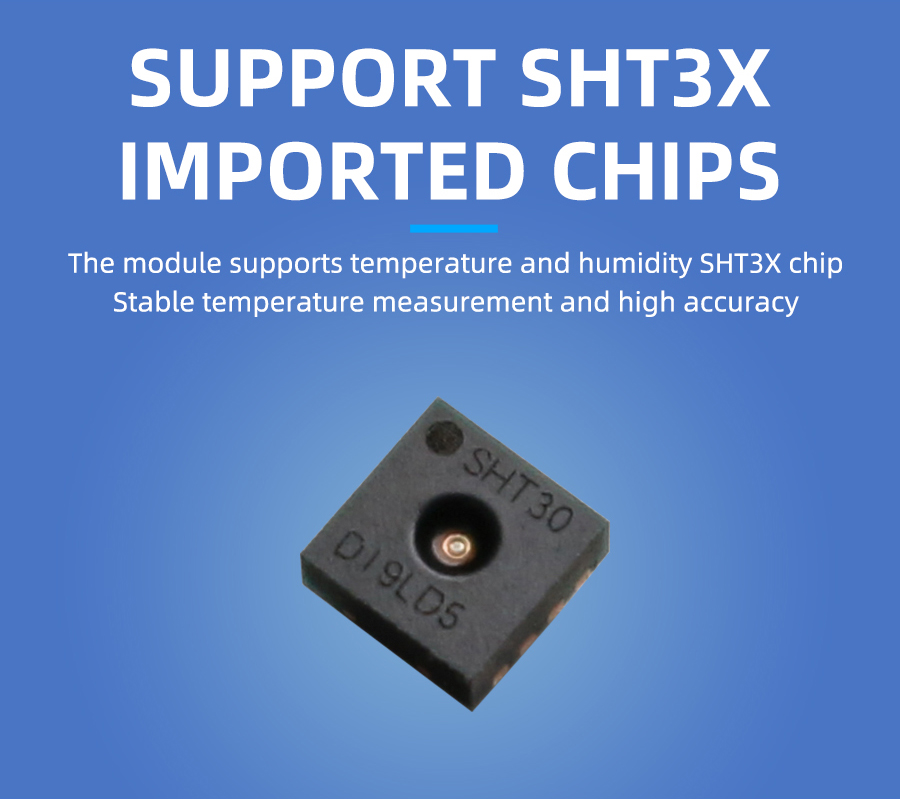

Support sensorSHT30
Channels8
Input busIIC
Communication InterfaceRS485
Default baud rate9600 8 n 1
PowerDC5~24V 1A

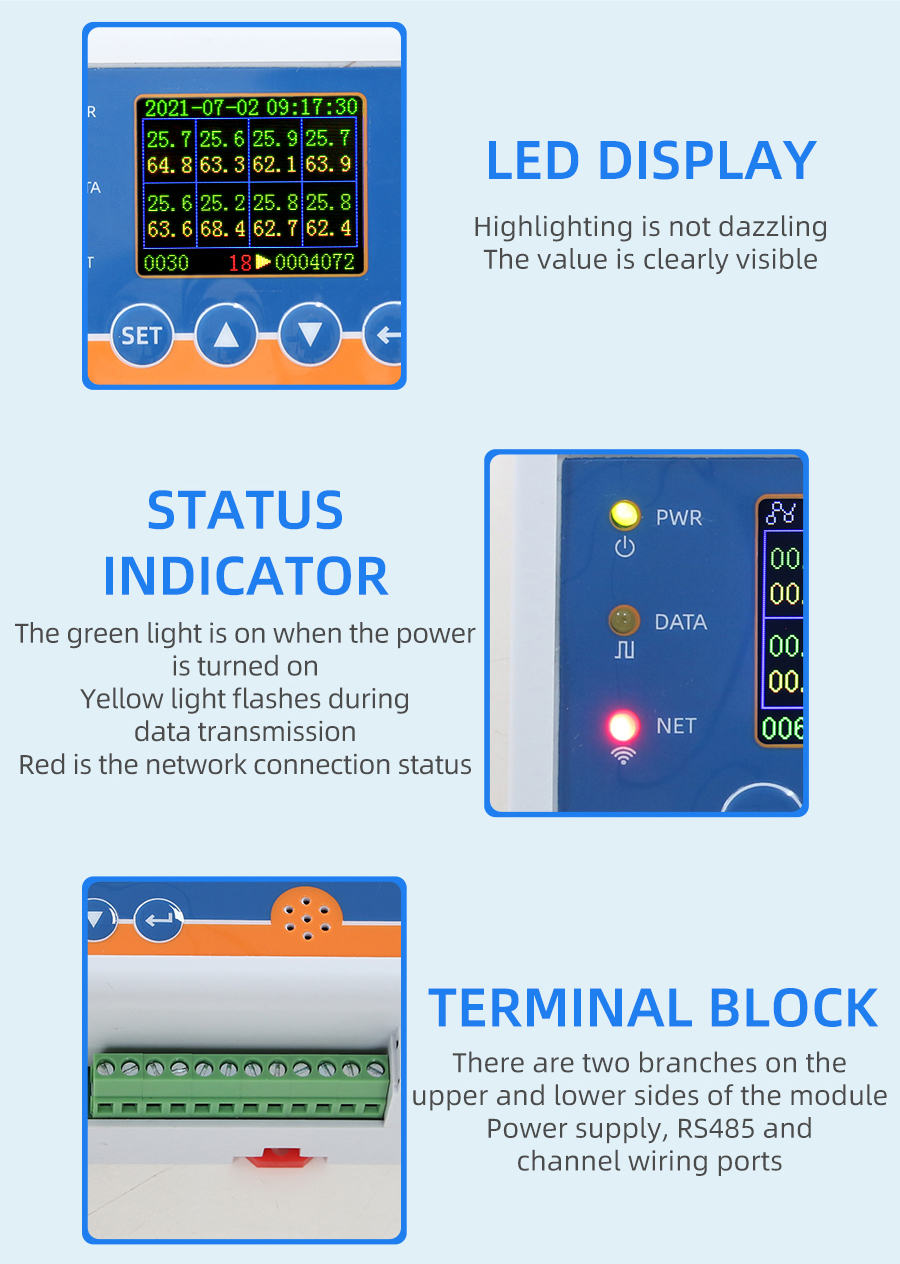

Display1.8 TFT
Running temperature-30~85℃

Product Size

SD3613R

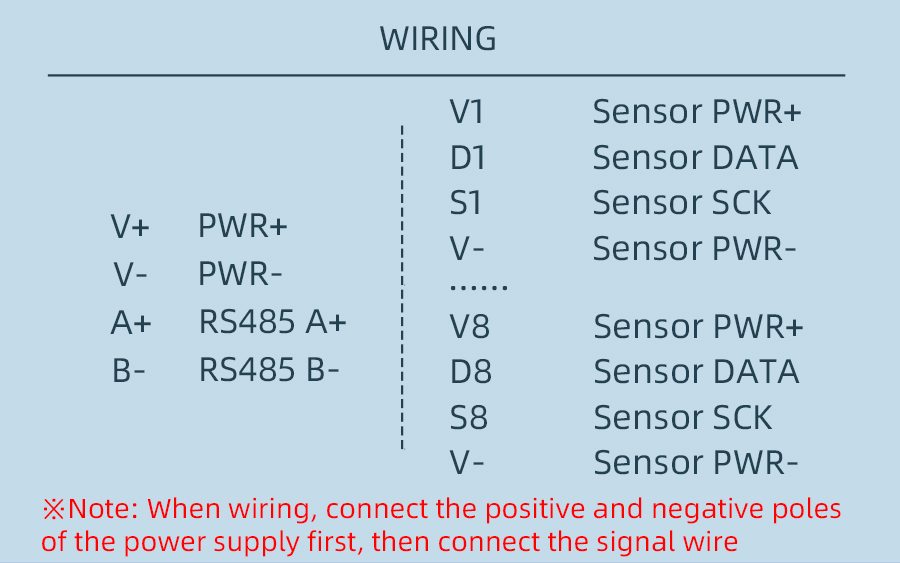

Wiring instructions

Why choose this product?

SD3613R SD3613R SD3613R SD3613R

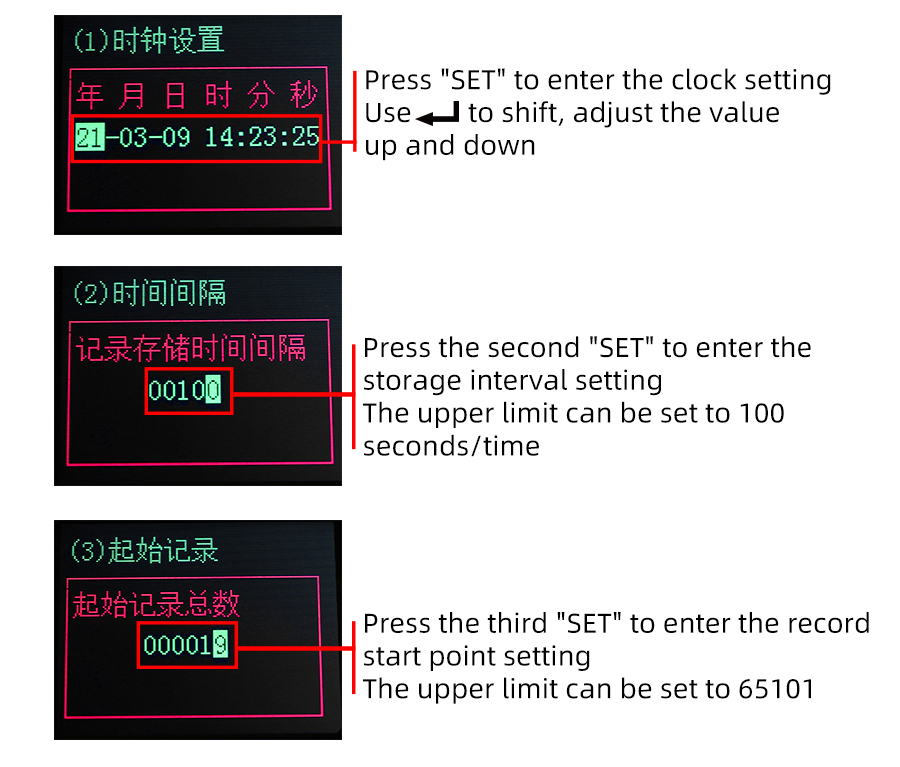

How to use?

SD3613R SD3613R SD3613R SD3613R

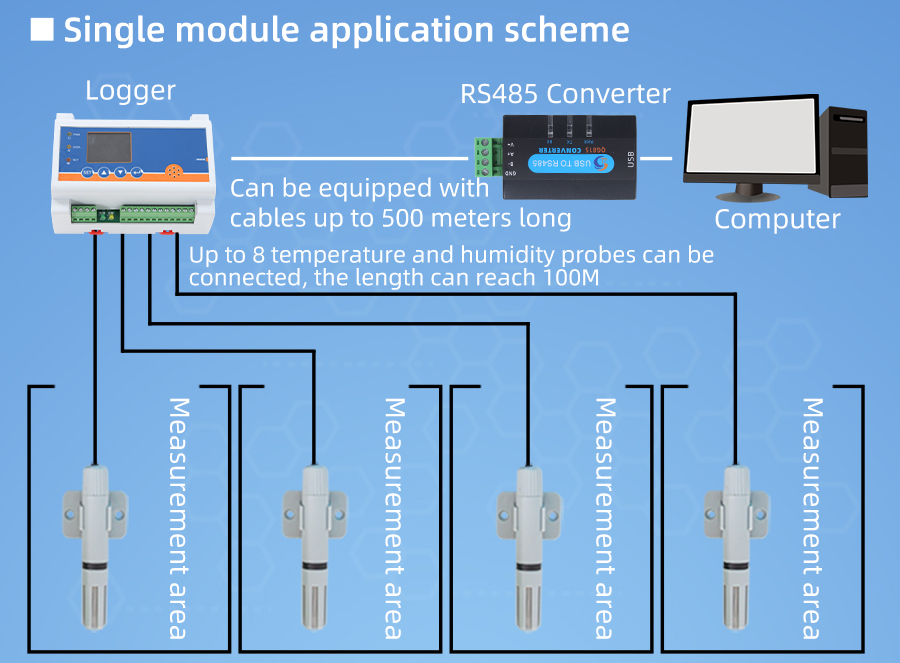

Application solution

SD3613R SD3613R

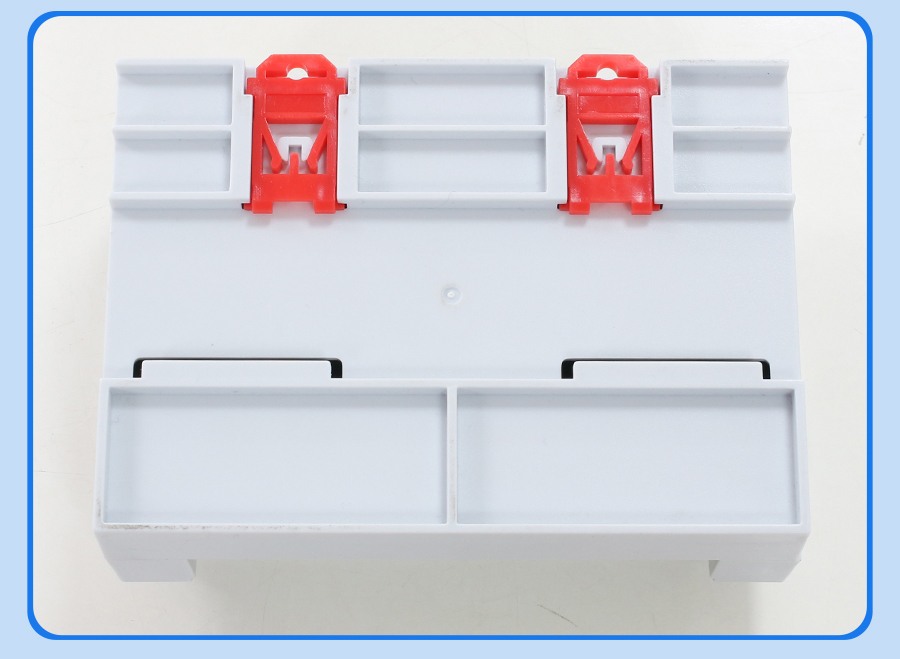

Pictures

SD3613R SD3613R SD3613R SD3613R

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 02 C4 0B .
Address Function Code Start Address Data Length Check Code
010300 0000 02C4 0B
    For the correct query frame, the device will respond with data: 01 03 04 00 79 00 00 2B EA , response format:
Address Function Code LengthData 1Data 2Data 3
Data 4Data 5Data 6Data ...Data 15Data 16
Check Code0103 0400 7900 7A
00 7B00 7C00 7D00 7E............00 79
00 79 2B EA
    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table
Configuration Address Register Address Register Description Data Type Value Range
4000100 001#temperature registerRead Only0~65535
4000200 012#humidity registerRead Only0~65535
4000300 023#temperature registerRead Only0~65535
4000400 034#humidity registerRead Only0~65535
4000500 045#temperature registerRead Only0~65535
4000600 056#humidity registerRead Only0~65535
...............
4001500 0E15#temperature registerRead Only0~65535
4001600 F16#humidity registerRead Only0~65535
4010100 64Model CodeRead/Write0~65535
4010200 65 total number of measuring points read/write 1~20
4010300 66device addressread/write1~249
4010400 67baud rateread/write0~6
4010500 68communication moderead/write1~4
4010600 69protocol typeread/write1~10
