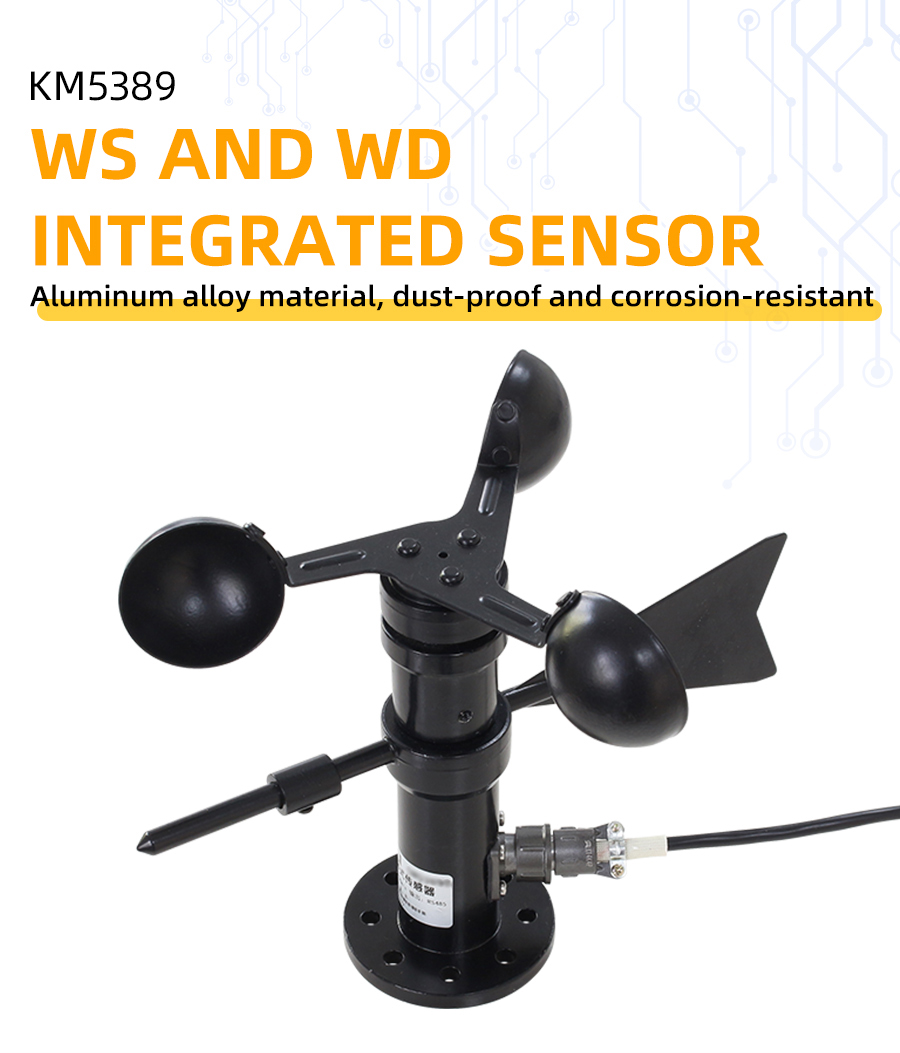

 [KM53V89]  0-5V outdoor aluminum wind speed and direction integrated sensor

KM53V89 KM53V89

Technical Parameters

Technical parameterParameter value
BrandKLHA
Wind speed range0~30m/s
Start wind0.2m/s
Wind speed accuracy±3%
Shell materialaluminum
Wind direction range0~360°
Wind direction resolution22.5°
PowerDC12~24V 1A
Running temperature-30~85℃

Product Selection

    Product DesignDC0-5V,DC0-10VMultiple output methods, the products are divided into the following models depending on the output method.
Product model output method
KM53V8V5DC0-5V
KM53V8V10DC0-10V

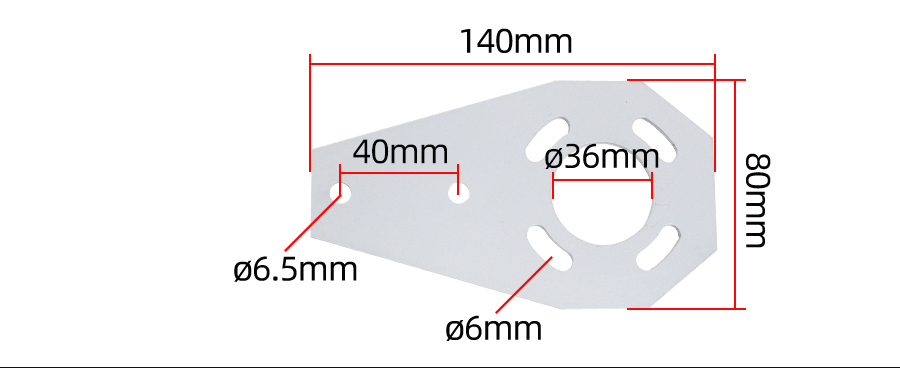

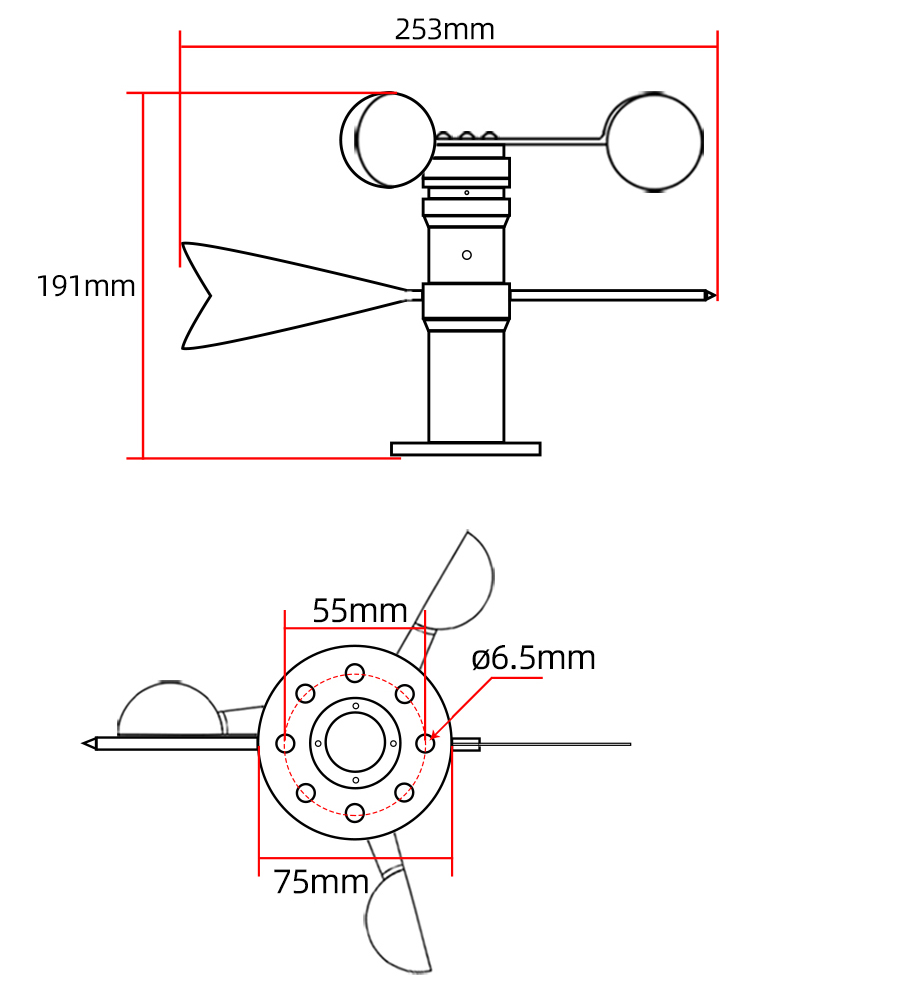

Product Size

KM53V89 KM53V89

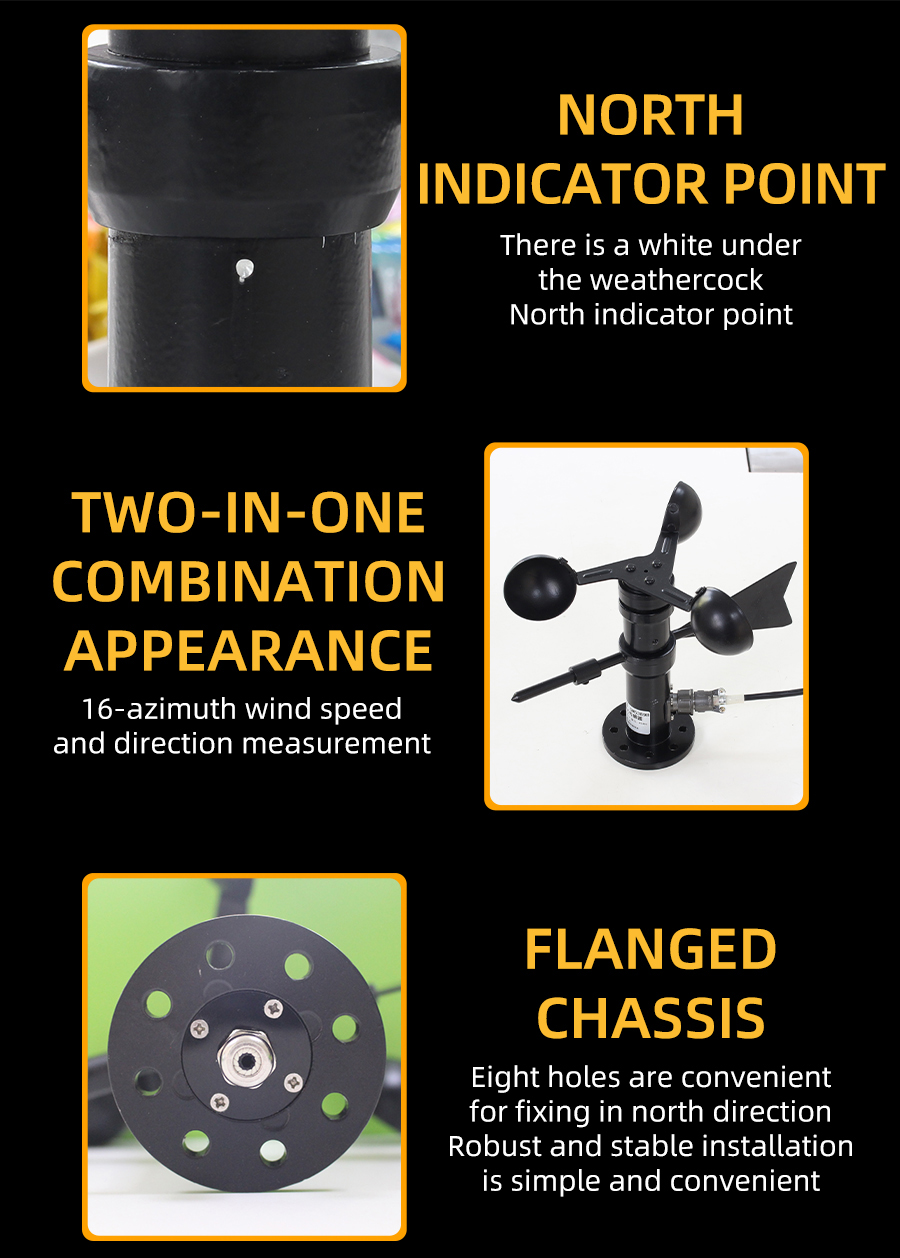

Why choose this product?

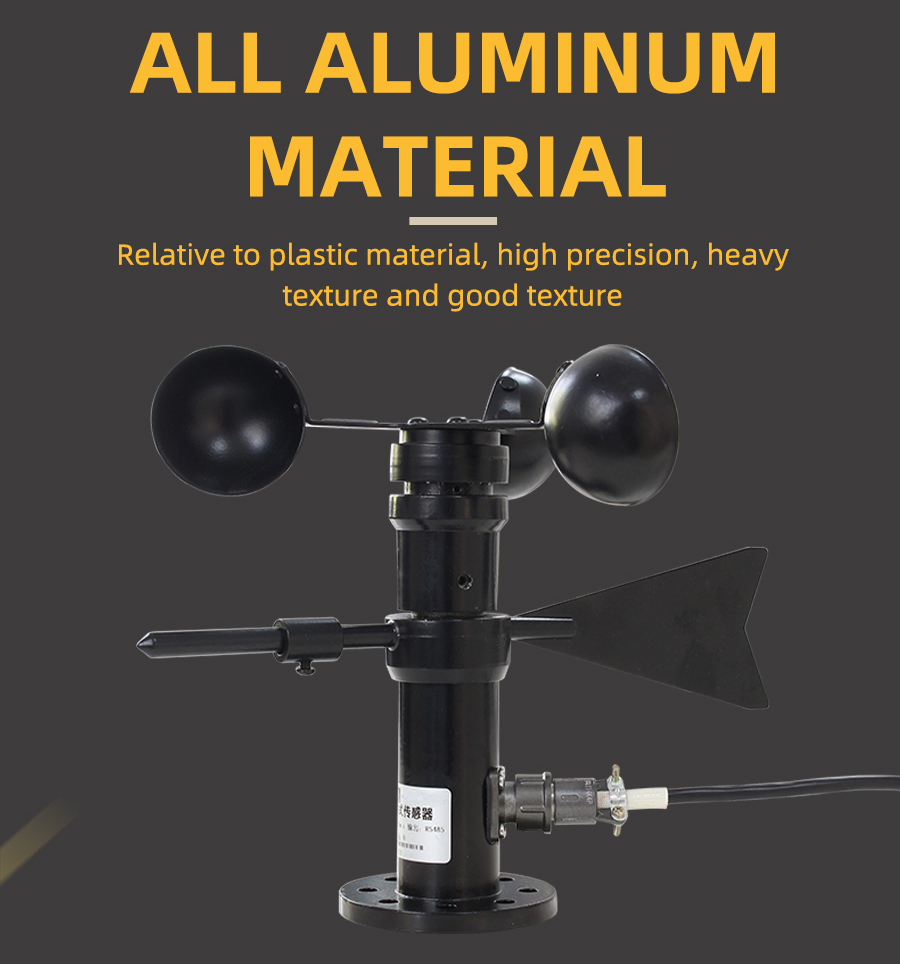

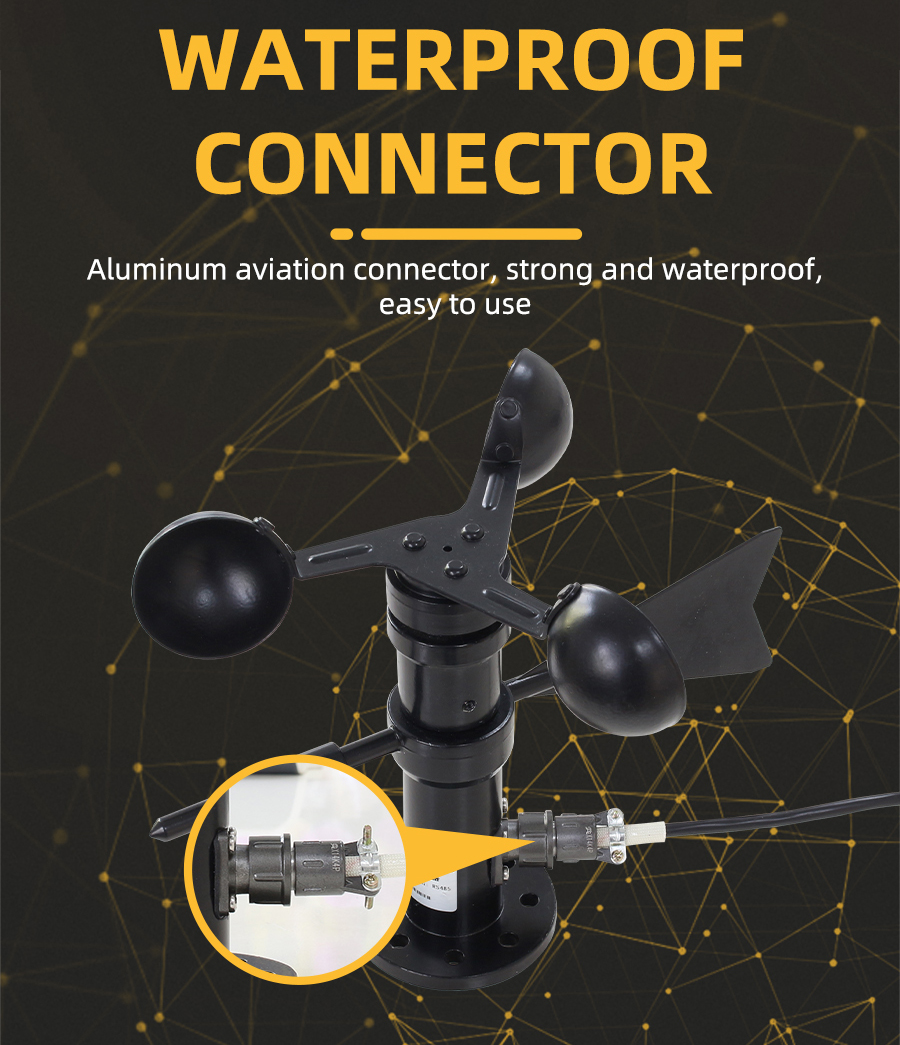

KM53V89 KM53V89 KM53V89 KM53V89

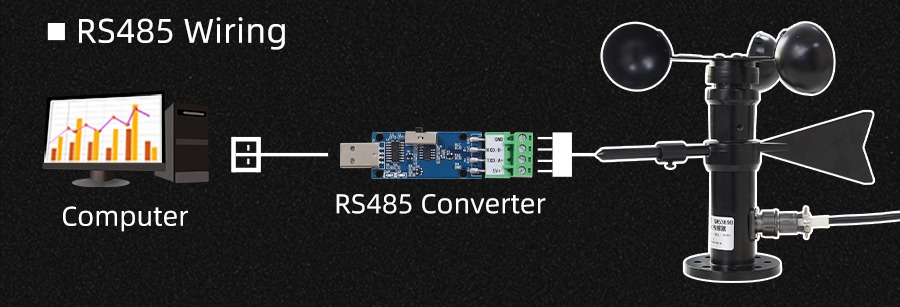

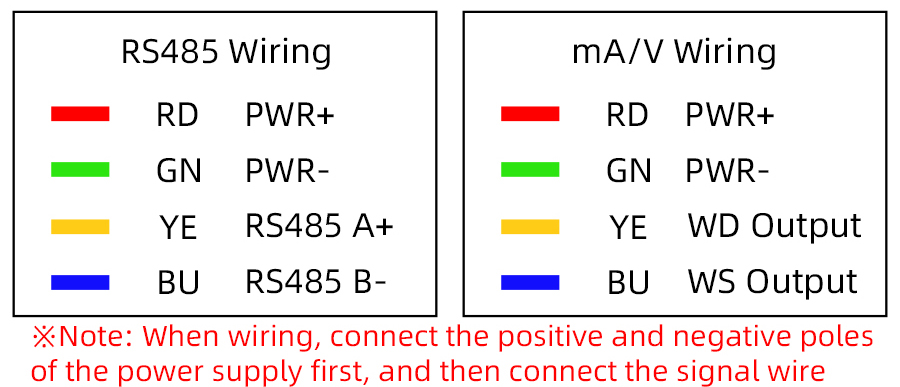

How to use?

KM53V89

Application solution

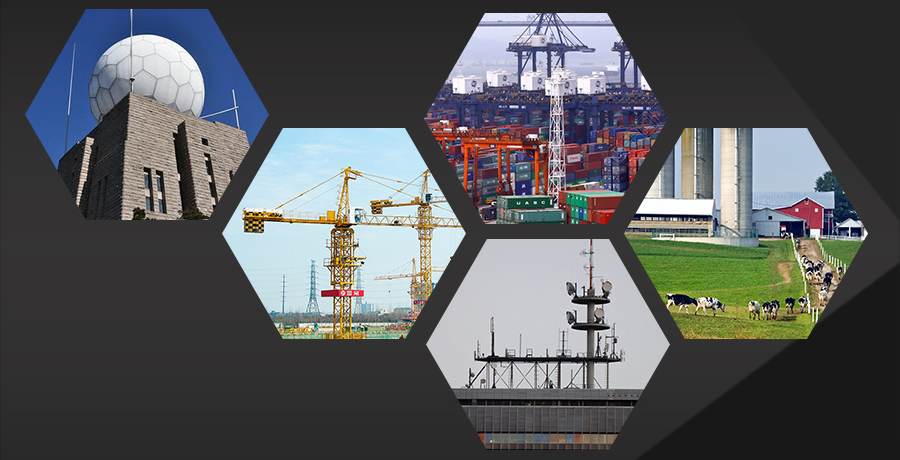

KM53V89 KM53V89 KM53V89

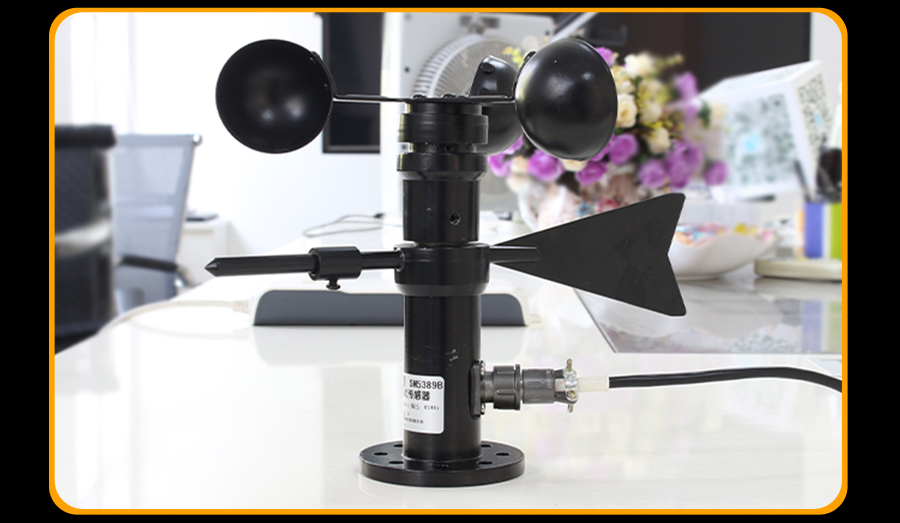

Pictures

KM53V89 KM53V89 KM53V89

1. wind speed and DC0-5Vvoltage computing relationship

  For example, the range is 0~30m/s, the analog output is 0~5V DC0-5Vvoltage signal, wind speed and DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated DC0-5Vvoltage value. The list of commonly used values is as follows:
DC0-5Vvoltage(V)wind speedValue (m/s) Calculation Process
00.0(30-0)*(0-0)÷(5-0)+0
16.0(30-0)*(1-0)÷(5-0)+0
212.0(30-0)*(2-0)÷(5-0)+0
318.0(30-0)*(3-0)÷(5-0)+0
424.0(30-0)*(4-0)÷(5-0)+0
530.0(30-0)*(5-0)÷(5-0)+0
    As shown in the above formula, when measuring 2.5V, current DC0-5Vvoltage is 15m/s。

2. conductivity and DC0-5Vvoltage computing relationship

  For example, the range is 0~360°, the analog output is 0~5V DC0-5Vvoltage signal, conductivity and DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated DC0-5Vvoltage value. The list of commonly used values is as follows:
DC0-5Vvoltage(V)conductivityValue (°) Calculation Process
00.0(360-0)*(0-0)÷(5-0)+0
172.0(360-0)*(1-0)÷(5-0)+0
2144.0(360-0)*(2-0)÷(5-0)+0
3216.0(360-0)*(3-0)÷(5-0)+0
4288.0(360-0)*(4-0)÷(5-0)+0
5360.0(360-0)*(5-0)÷(5-0)+0
    As shown in the above formula, when measuring 2.5V, current DC0-5Vvoltage is 180°。

1. wind speed and DC0-10Vvoltage computing relationship

  For example, the range is 0~30m/s, the analog output is 0~10V DC0-10Vvoltage signal, wind speed and DC0-10Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is DC0-10Vvoltage output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated DC0-10Vvoltage value. The list of commonly used values is as follows:
DC0-10Vvoltage(V)wind speedValue (m/s) Calculation Process
00.0(30-0)*(0-0)÷(10-0)+0
13.0(30-0)*(1-0)÷(10-0)+0
26.0(30-0)*(2-0)÷(10-0)+0
39.0(30-0)*(3-0)÷(10-0)+0
412.0(30-0)*(4-0)÷(10-0)+0
515.0(30-0)*(5-0)÷(10-0)+0
618.0(30-0)*(6-0)÷(10-0)+0
721.0(30-0)*(7-0)÷(10-0)+0
824.0(30-0)*(8-0)÷(10-0)+0
927.0(30-0)*(9-0)÷(10-0)+0
1030.0(30-0)*(10-0)÷(10-0)+0
    As shown in the above formula, when measuring 5V, current DC0-10Vvoltage is 15m/s。

2. conductivity and DC0-10Vvoltage computing relationship

  For example, the range is 0~360°, the analog output is 0~10V DC0-10Vvoltage signal, conductivity and DC0-10Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is DC0-10Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated DC0-10Vvoltage value. The list of commonly used values is as follows:
DC0-10Vvoltage(V)conductivityValue (°) Calculation Process
00.0(360-0)*(0-0)÷(10-0)+0
136.0(360-0)*(1-0)÷(10-0)+0
272.0(360-0)*(2-0)÷(10-0)+0
3108.0(360-0)*(3-0)÷(10-0)+0
4144.0(360-0)*(4-0)÷(10-0)+0
5180.0(360-0)*(5-0)÷(10-0)+0
6216.0(360-0)*(6-0)÷(10-0)+0
7252.0(360-0)*(7-0)÷(10-0)+0
8288.0(360-0)*(8-0)÷(10-0)+0
9324.0(360-0)*(9-0)÷(10-0)+0
10360.0(360-0)*(10-0)÷(10-0)+0
    As shown in the above formula, when measuring 5V, current DC0-10Vvoltage is 180°。
